BBE SM500 Sonic Maximizer 500 Series Module

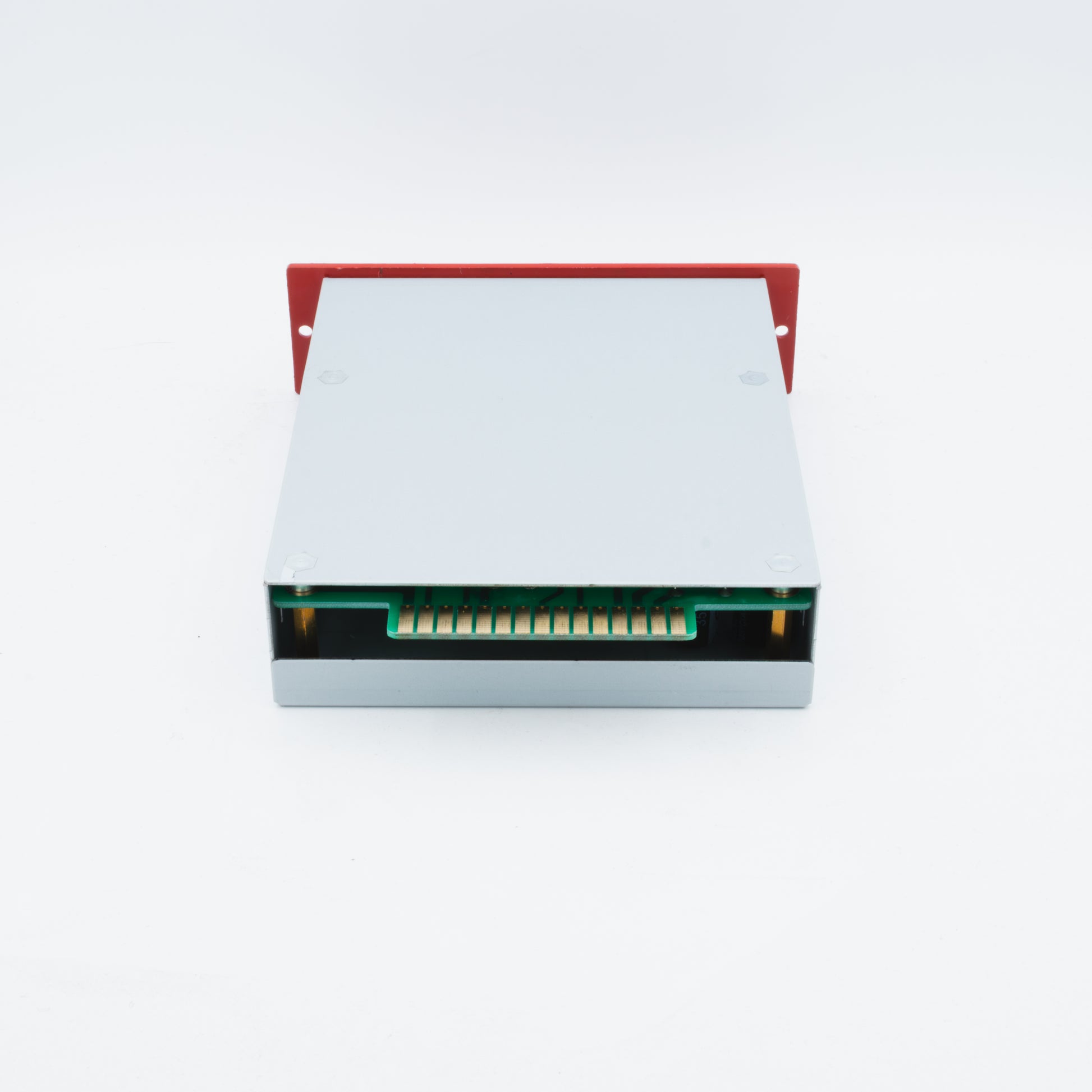

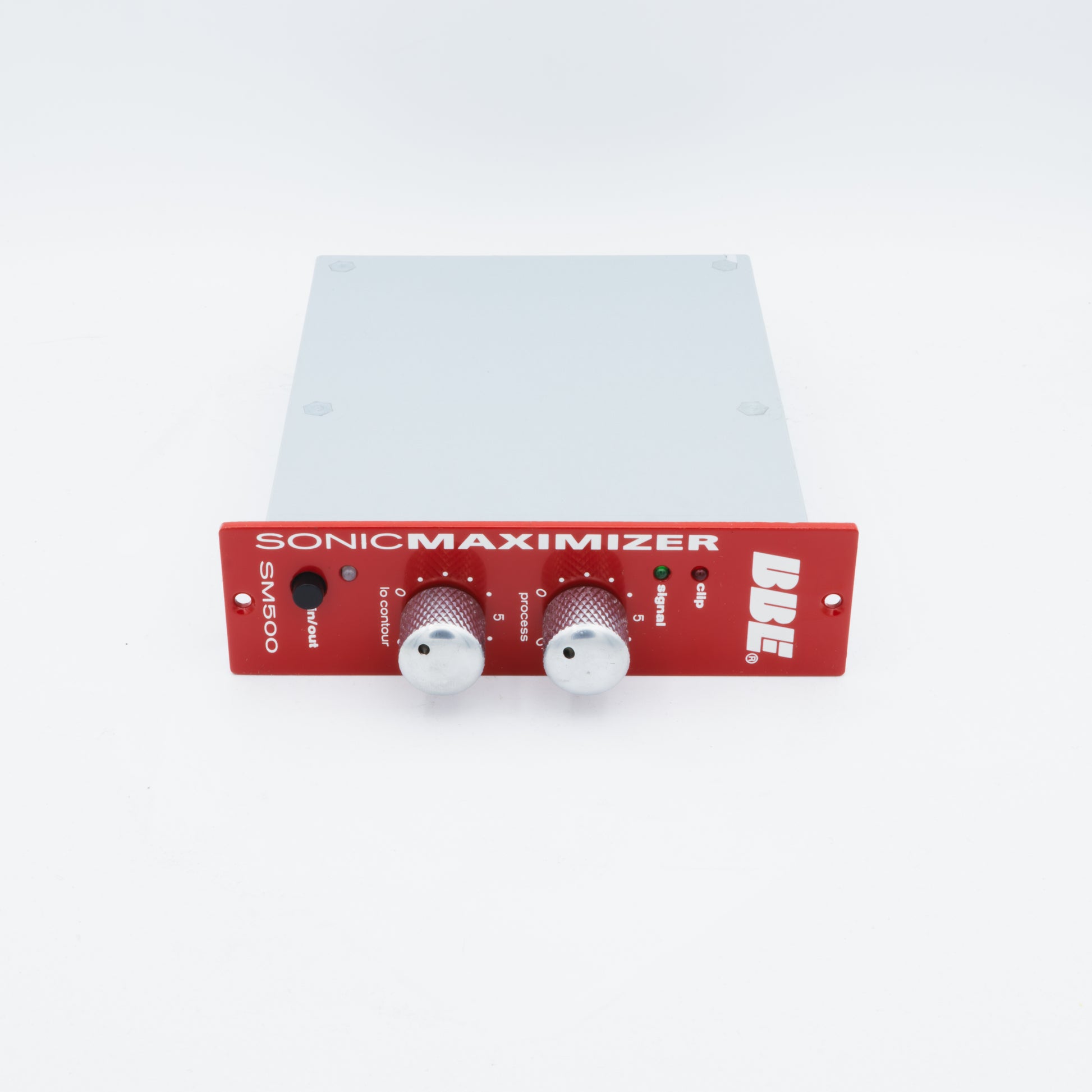

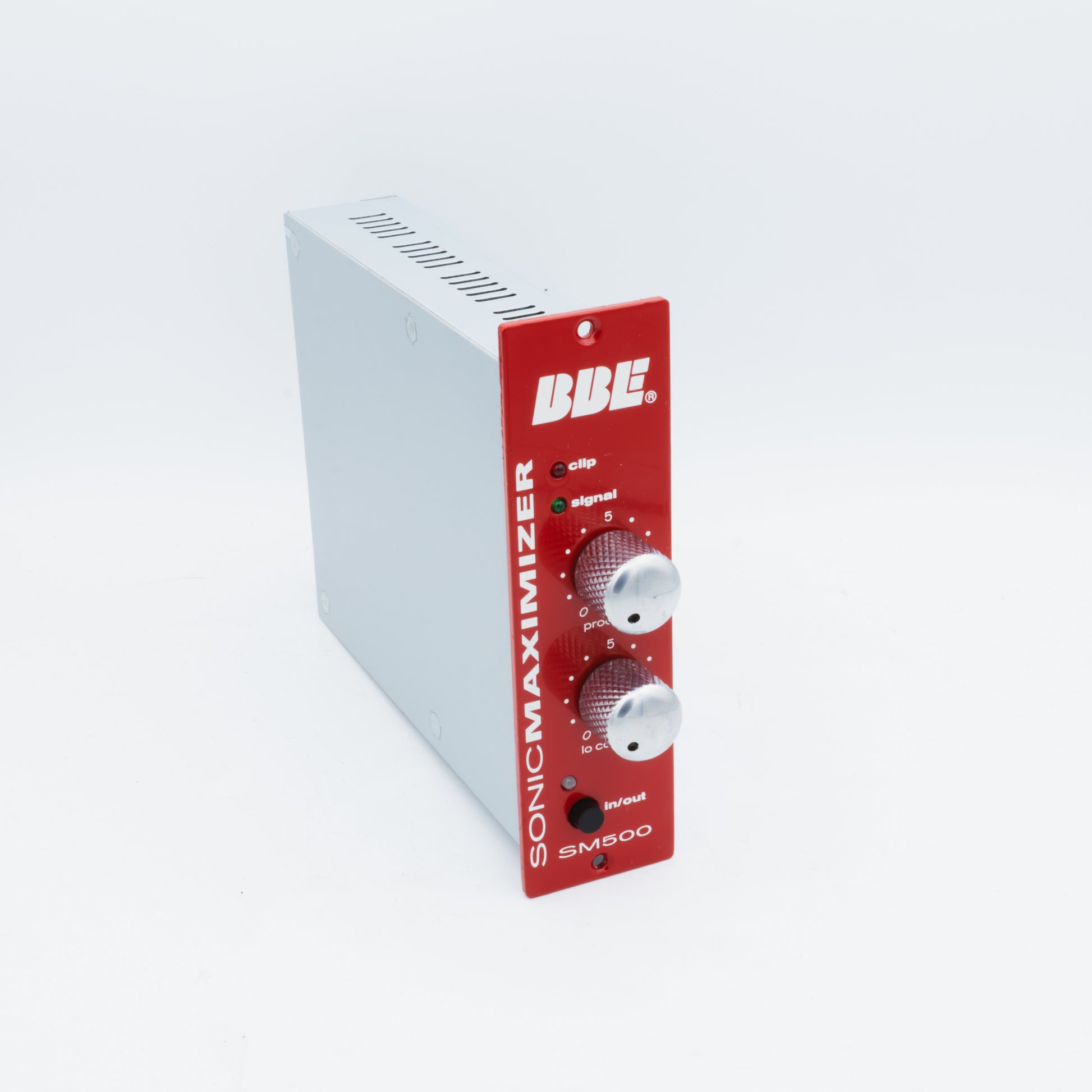

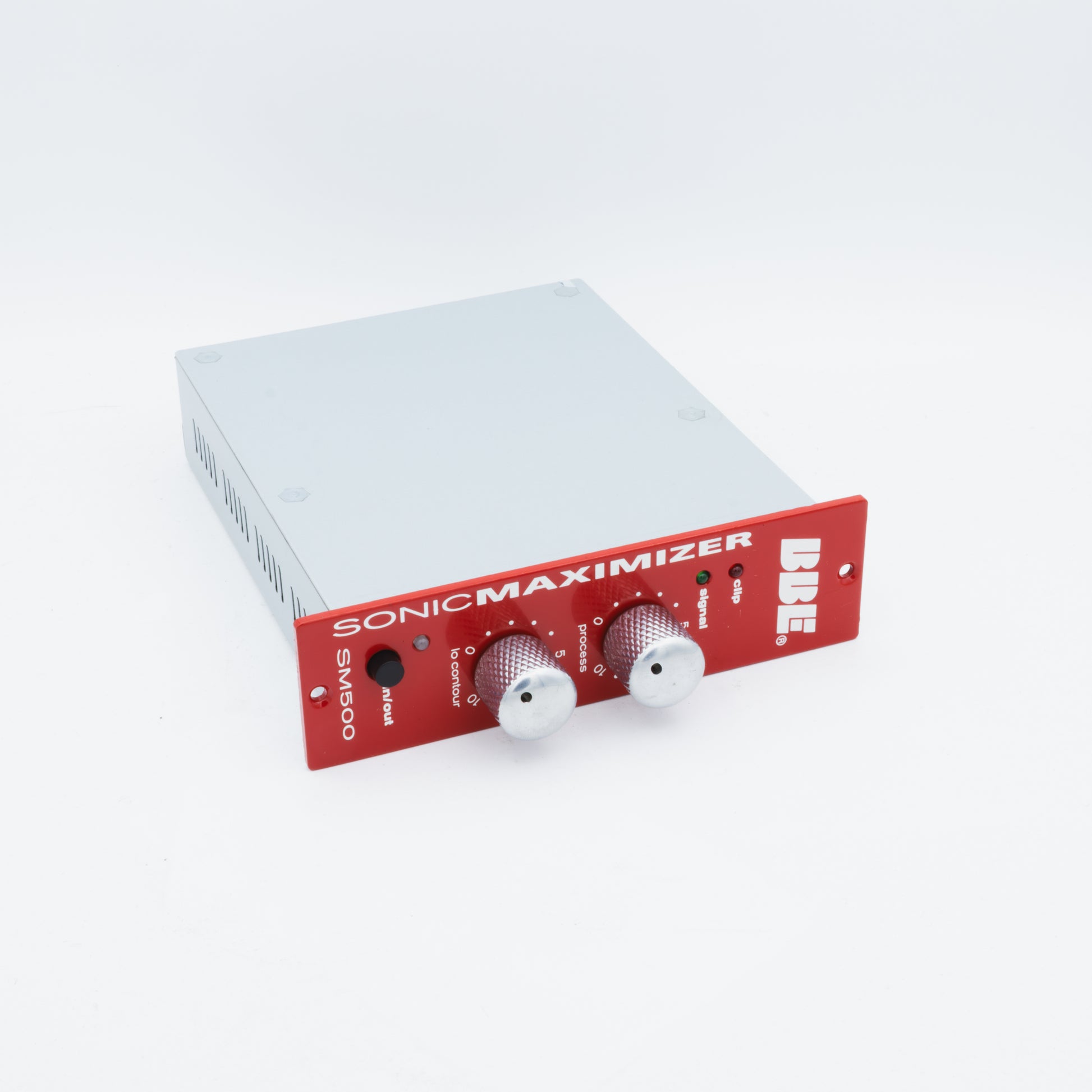

The BBE SM500 Sonic Maximizer is a modular single-channel signal processor designed to be used specifically with 500 series rack made by many manufacturers today. It provides processing for the mono channel, brightening, clarifying, and adding fullness to the sound. Features include +23dBu headroom and a bypass switch for comparison of processed to unprocessed signals.

The SM500 uses the same processing engine as our celebrated 882i model, and the same process that has enhanced recordings for recording engineers and producers.

Throughout the world, there's barely a studio, sound engineer or record producer that doesn't own some version of BBE's Sonic Maximizer.

Features:

• Full-function, +4 balanced Sonic Maximizer
• Same Sonic Maximizer engine as the 882i
• +23dB of output headroom
• 118dB signal to noise ratio
• Fits any 500-compatible rack

Specifications

• Frequency response: 5Hz to 30kHz +/-0.5dBu, -10dBu input
• Total harmonic distortion (THD): less than 0.1% at -10dBu input, 20-20kHz
• Maximum output: +20dBu (may vary due to control settings)
• Input impedance: 47k Ohms balanced XLR
• Output impedance: 600 Ohms balanced XLR
• Sensitivity: -45dBu for maximum process
